Internal Corner - Installation
![](/images_pages/113_pages_image_7_Internal Corner Fascia Section Cut a.jpg)

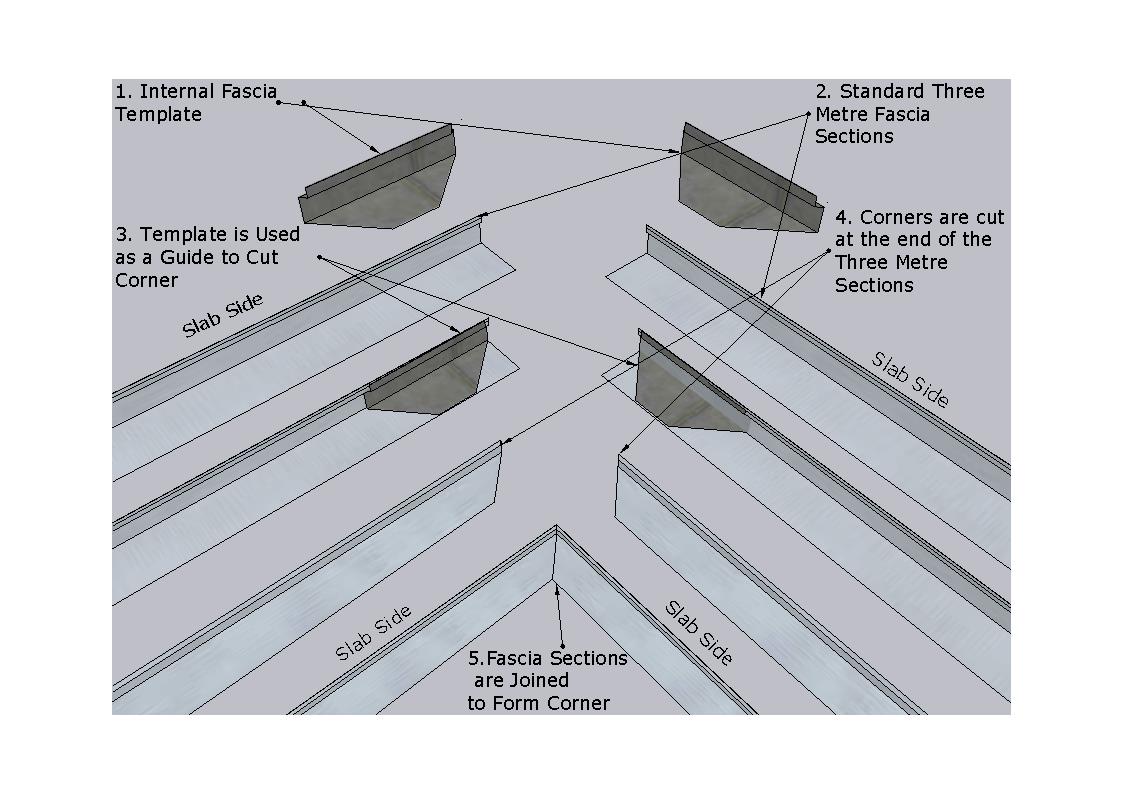

A photo of the Internal Corner Fascia Template and a section of Fascia. The Template is placed on the outside of the ends of the fascia sections to mark where to cut to length.
![](/images_pages/113_pages_image_6_Internal Corner Photo.jpg)

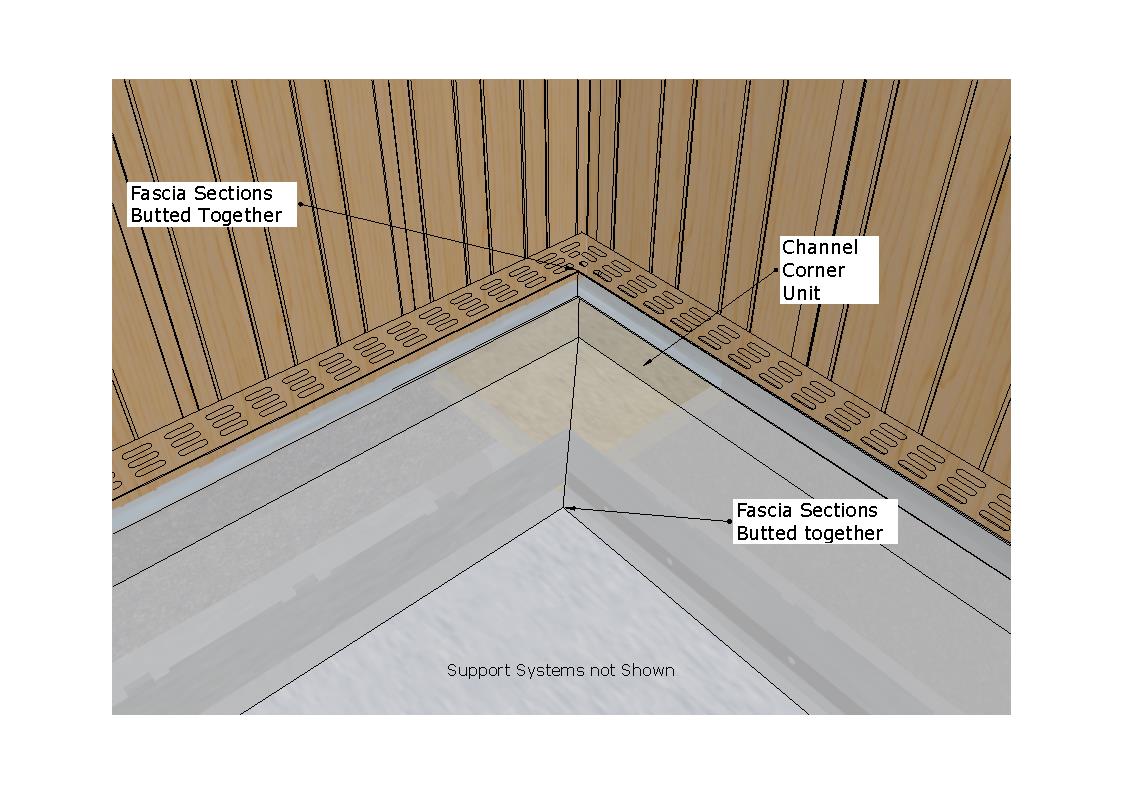

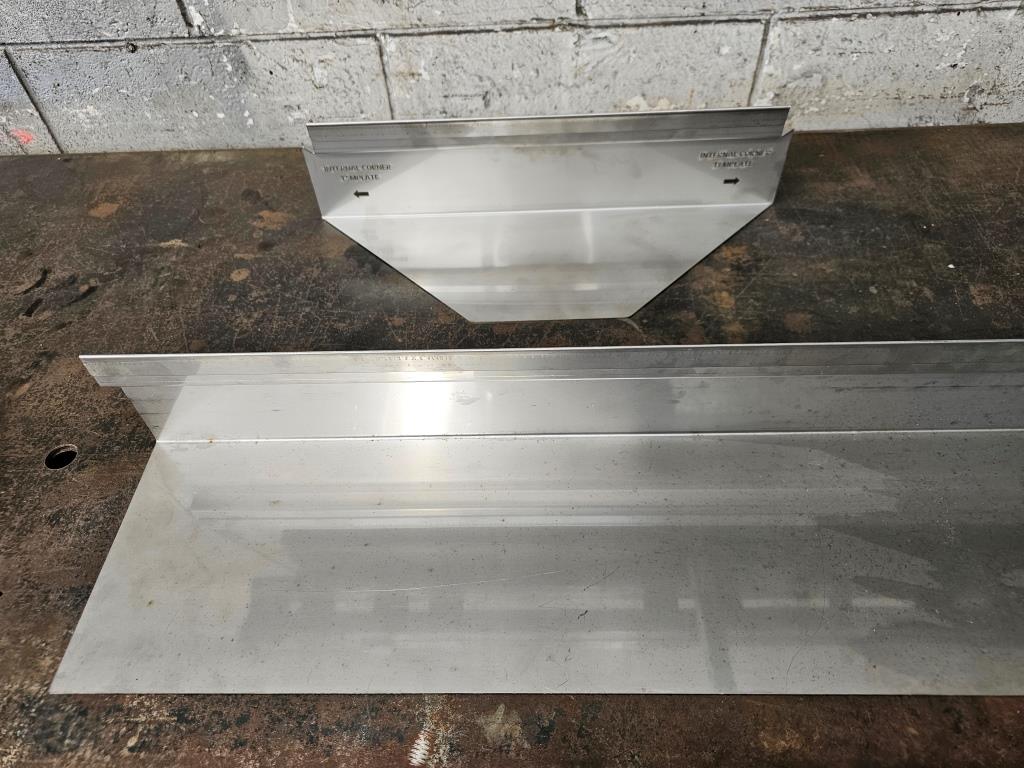

Internal Corner, Installed
![](/images_pages/113_pages_image_2_Internal corner unit and Channels complete.jpg)

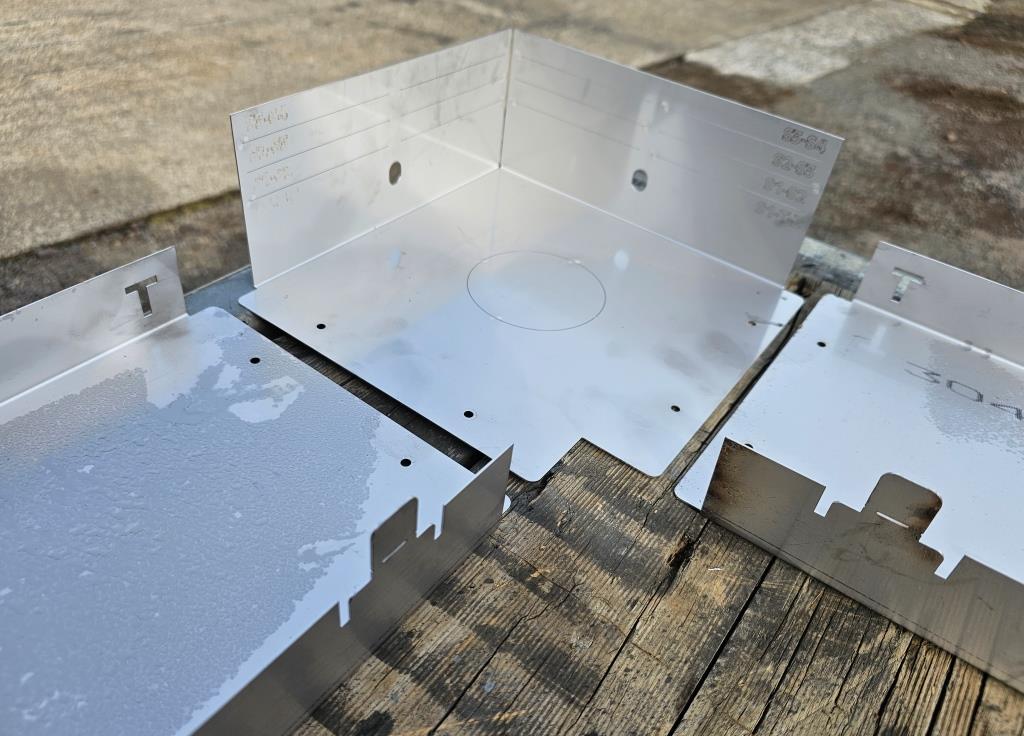

A photo of the corner unit base which is connected to the adjacent channels.
![](/images_pages/113_pages_image_5_Intenal Corner Base photo.jpg)
External Corner - Installation
![](/images_pages/113_pages_image_8_External Fascia Corner cut process.jpg)

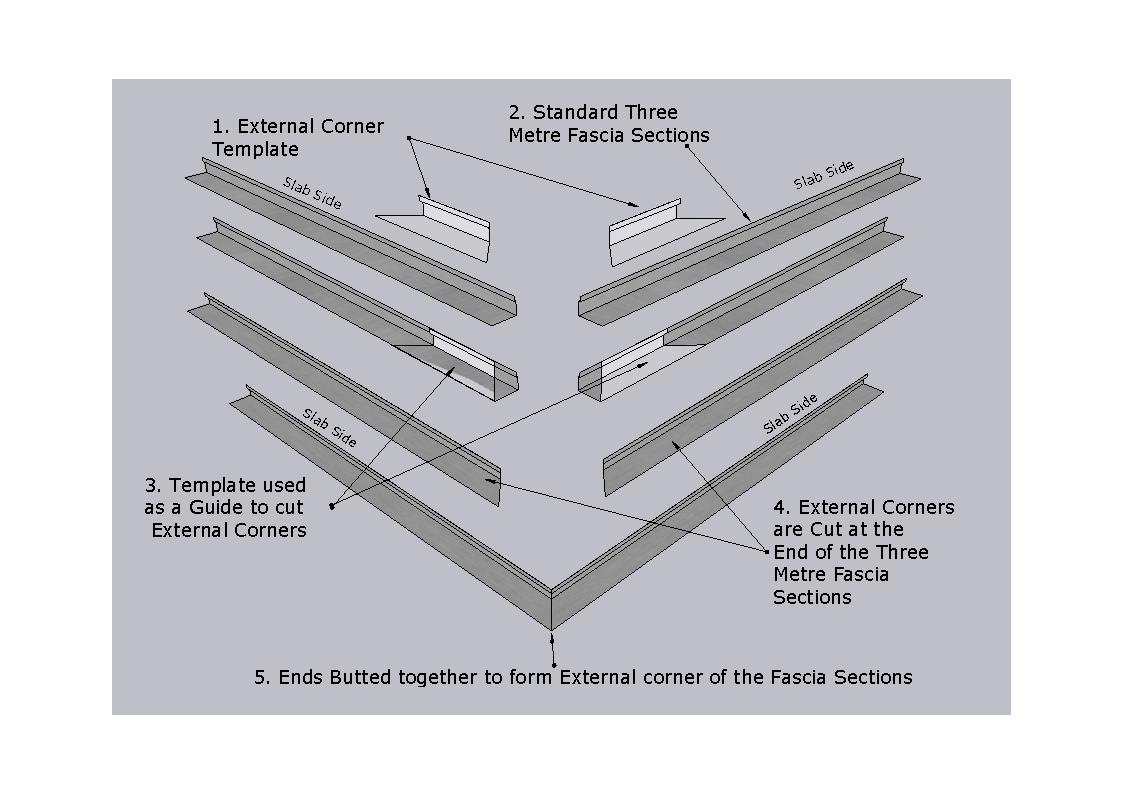

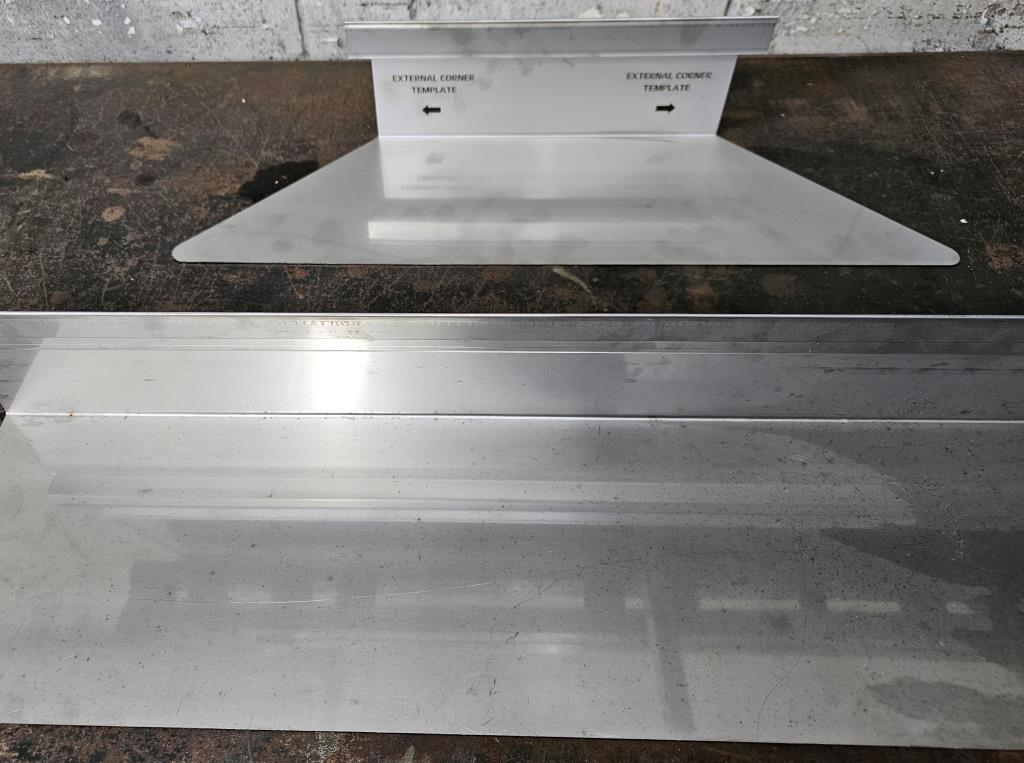

A photo of the External Corner Fascia Template and a section of Fascia. The Template is placed on the outside of the ends of the fascia sections to mark where to cut to length.
![](/images_pages/113_pages_image_4_External Corner Photo.jpg)
![](/images_pages/113_pages_image_9_Fig 12 External Corner.jpg)

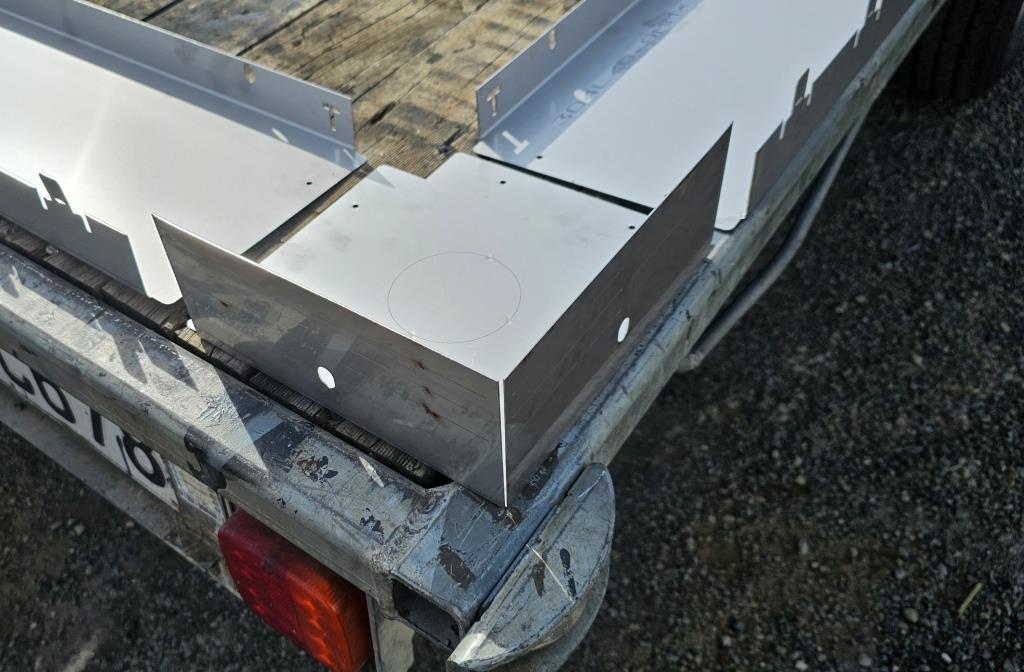

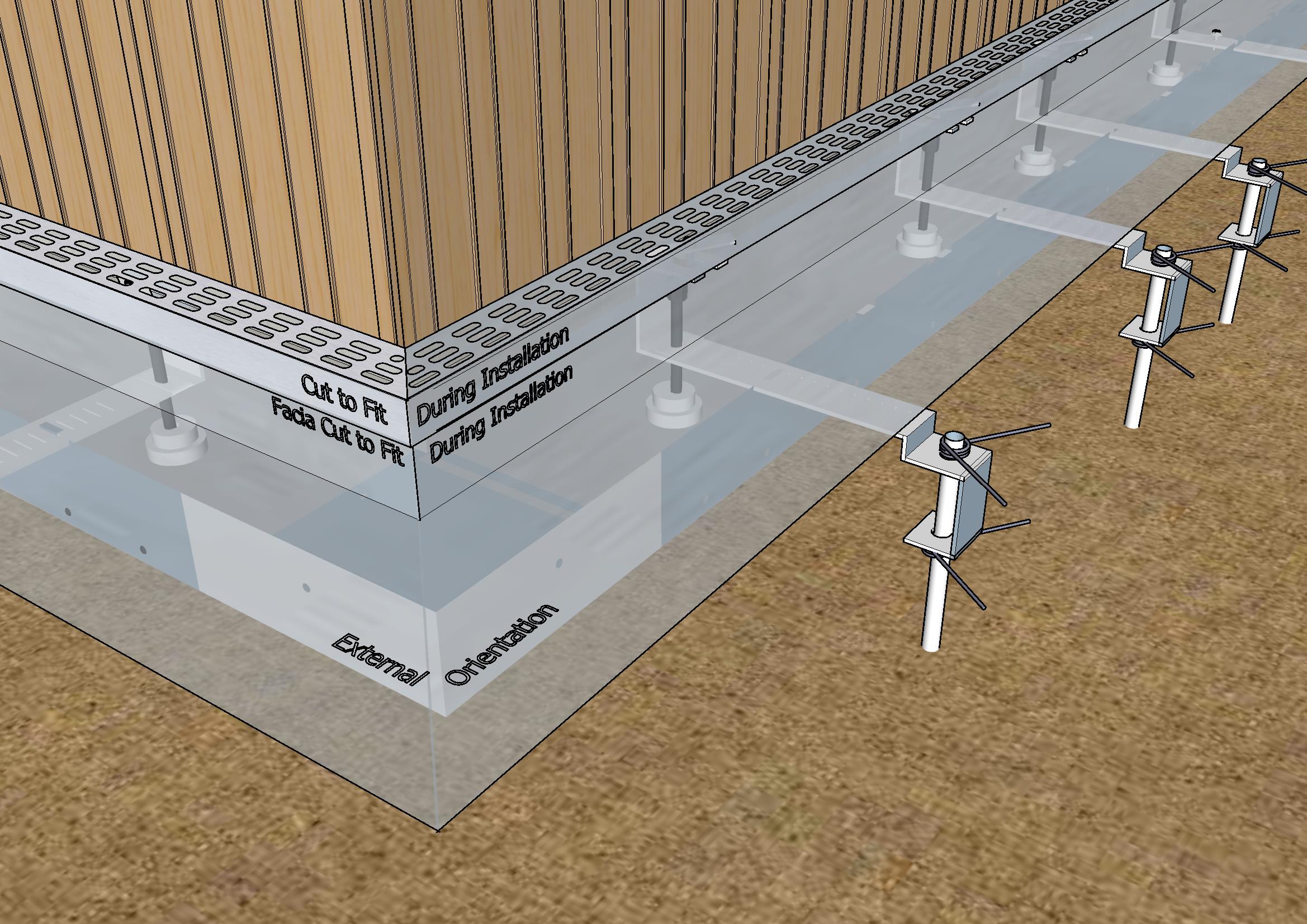

A photo of the corner unit base which is connected to the adjacent channels. The walls of the corner unit vary in height where sections can be removed (knock-outs)" to align with the adjacent channel built-in-fall walls: S1, S2, S3, S4
![](/images_pages/113_pages_image_3_Extenal Corner Base photo 1.jpg)
