In-Line Sumps

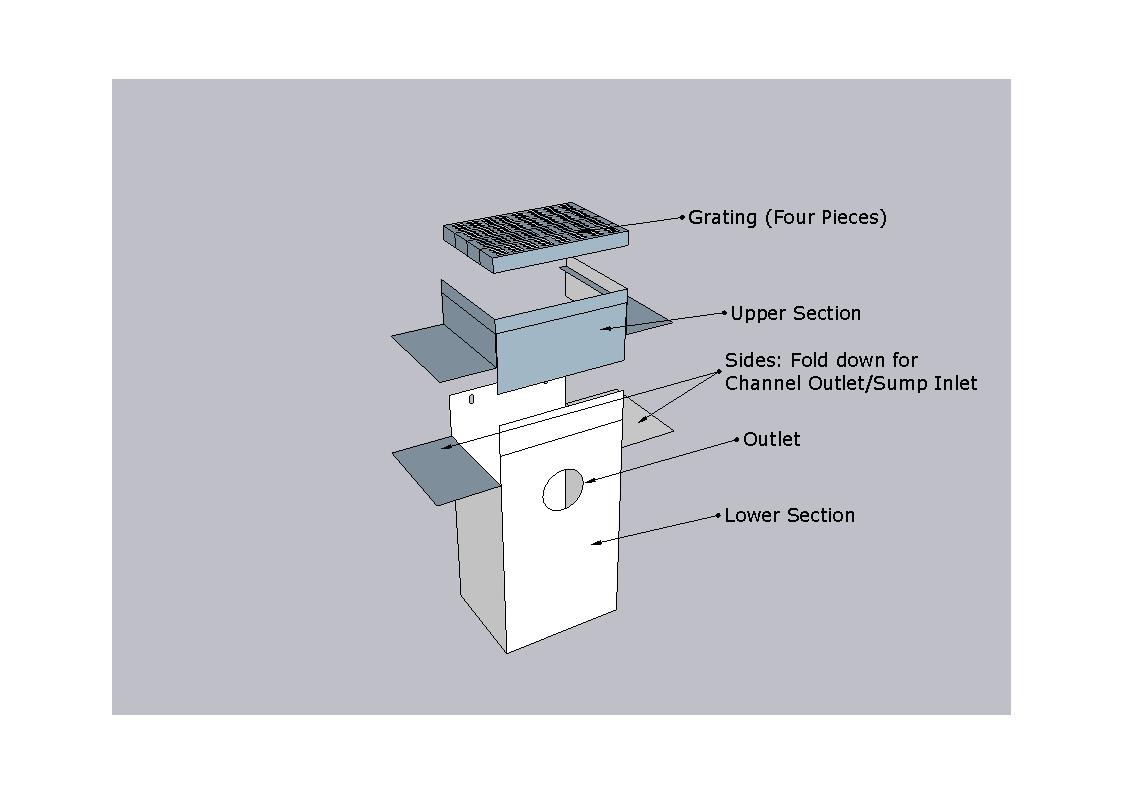

Key Components - Exploded View

In-Line Sump Installation Process

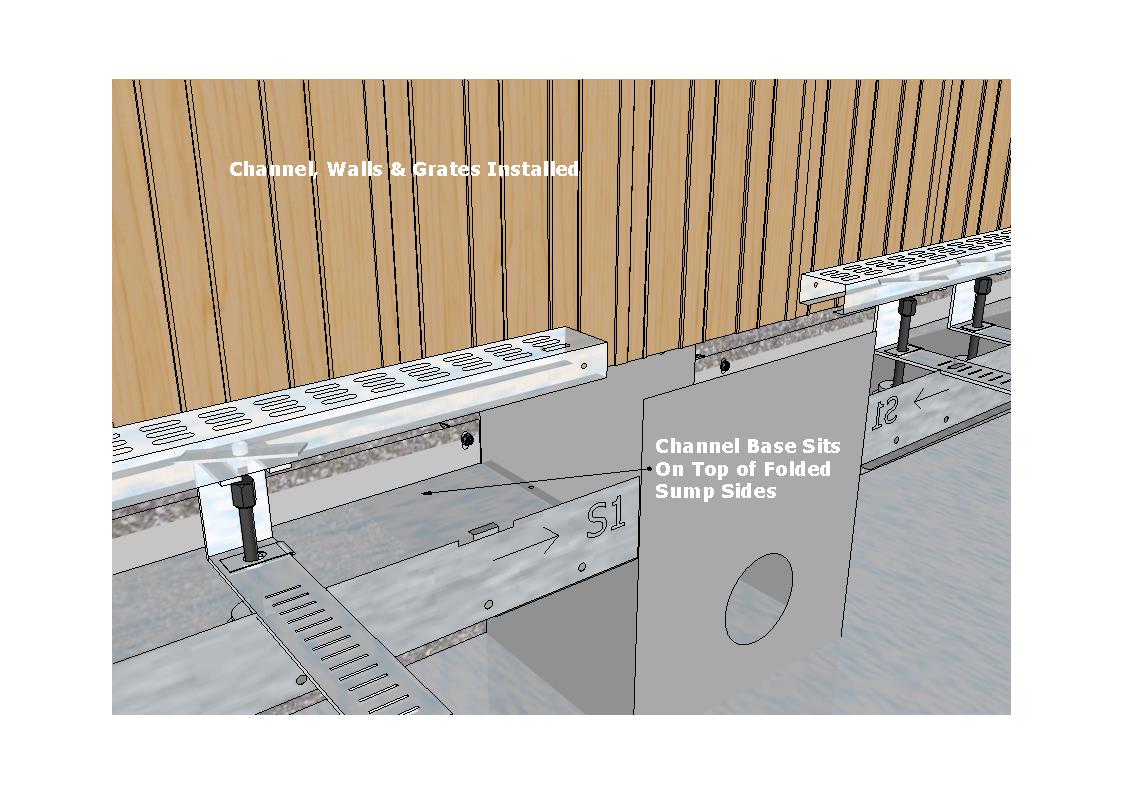

Step 1: Install Bottom Section Against Slab with bottom adjacent Channel Sections on top of "inlet side" which has been folded down to a horizontal position.

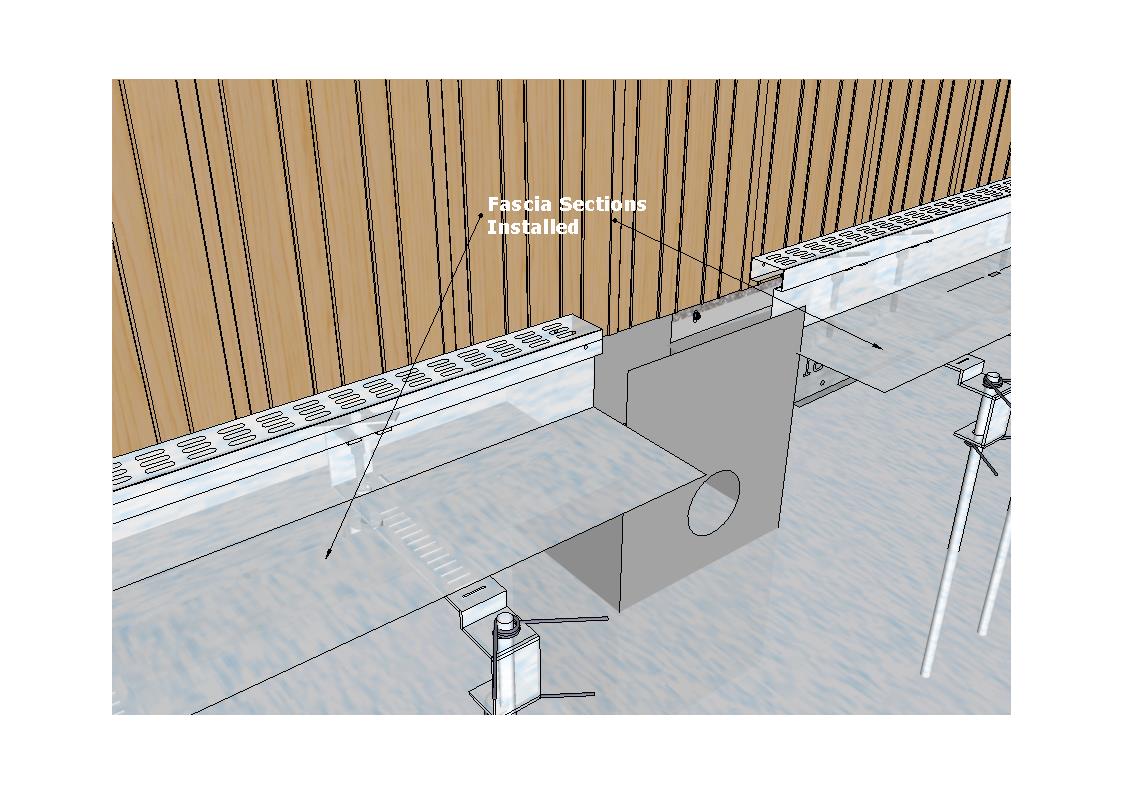

Step 2: Install Fascia Section to butt up against side of sump

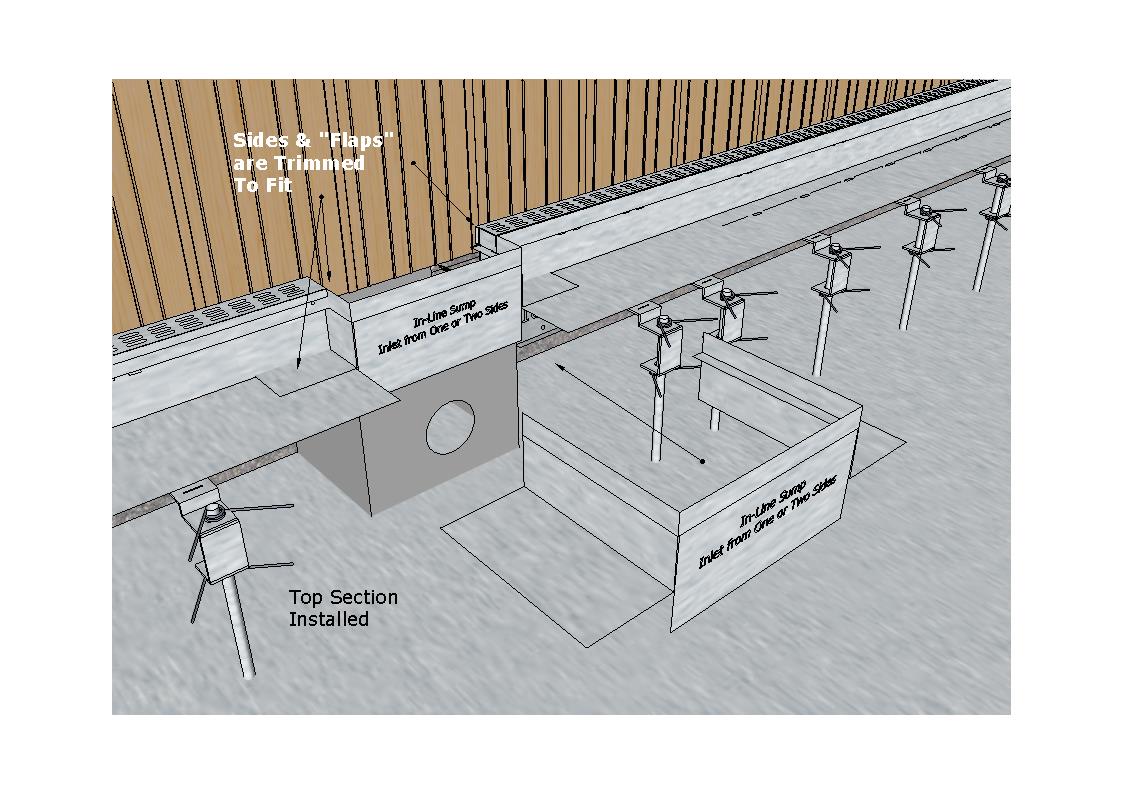

Step 3: Insert Top Section. The "Horizontal sides" will sit on top of the Fascia Section. These will need to be trimmed to fit.

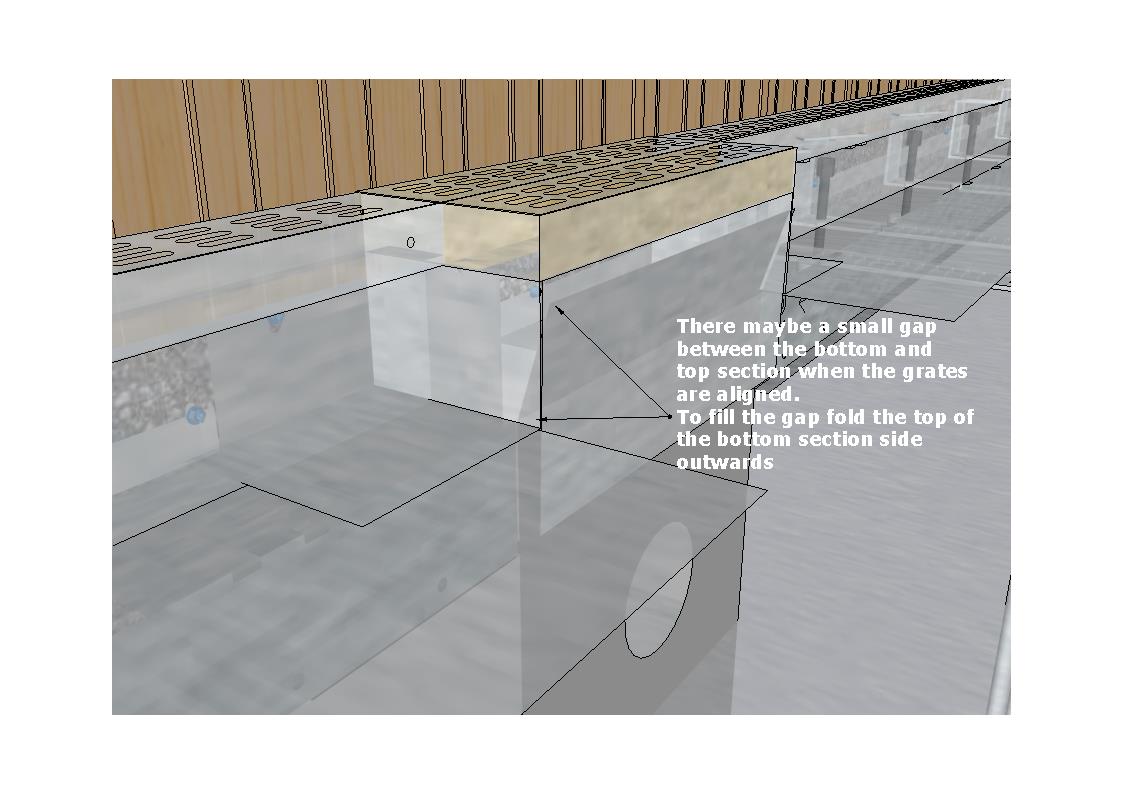

Step 4. If required, fold top of bottom section side outward to fill gap.

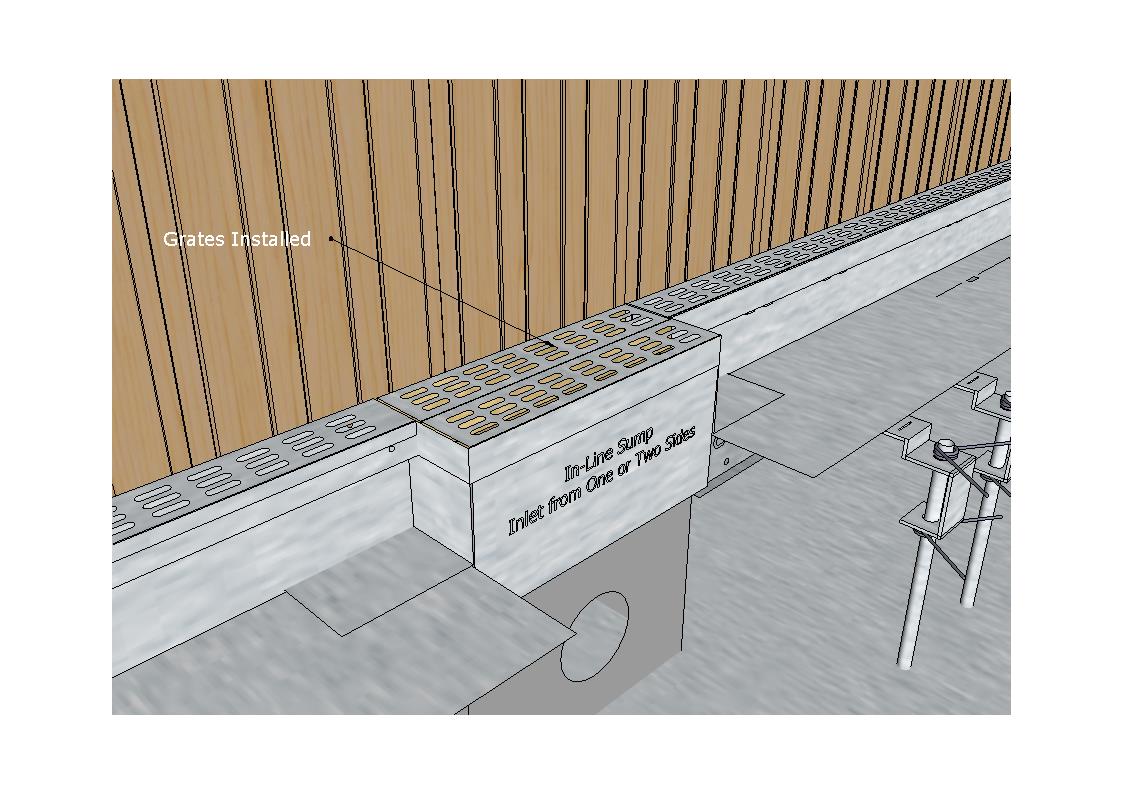

Step 5: Insert Grates. The number of grates (45mm width) will depend on the offset distance from the slab.

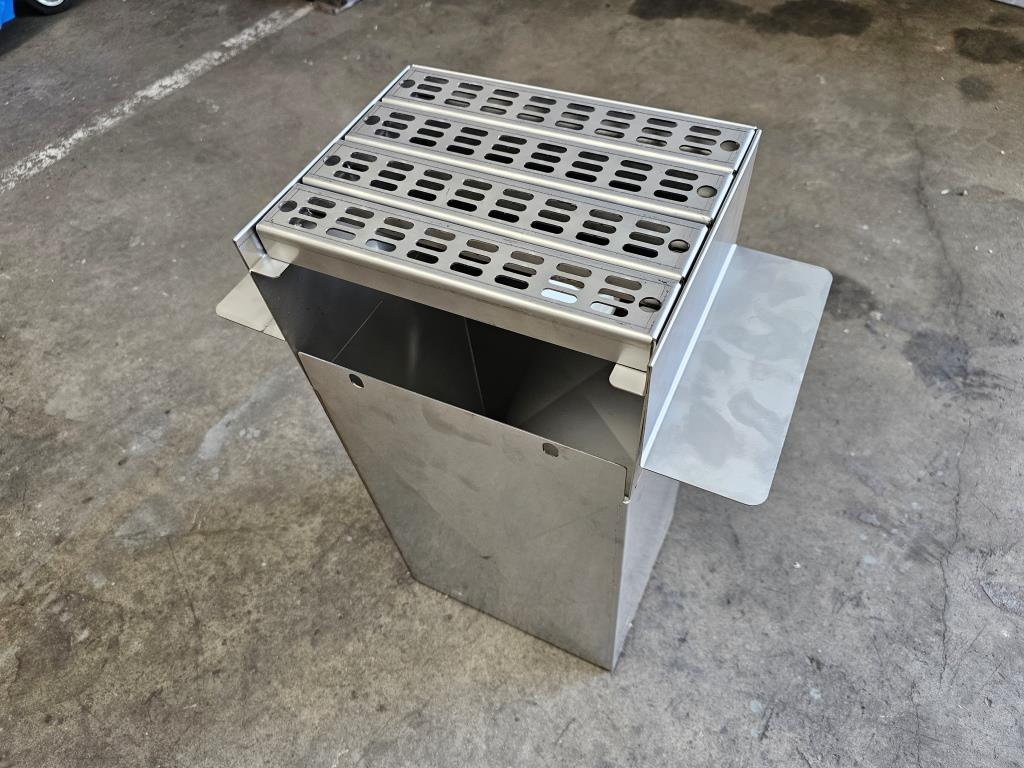

Inline Sump - Slab Side

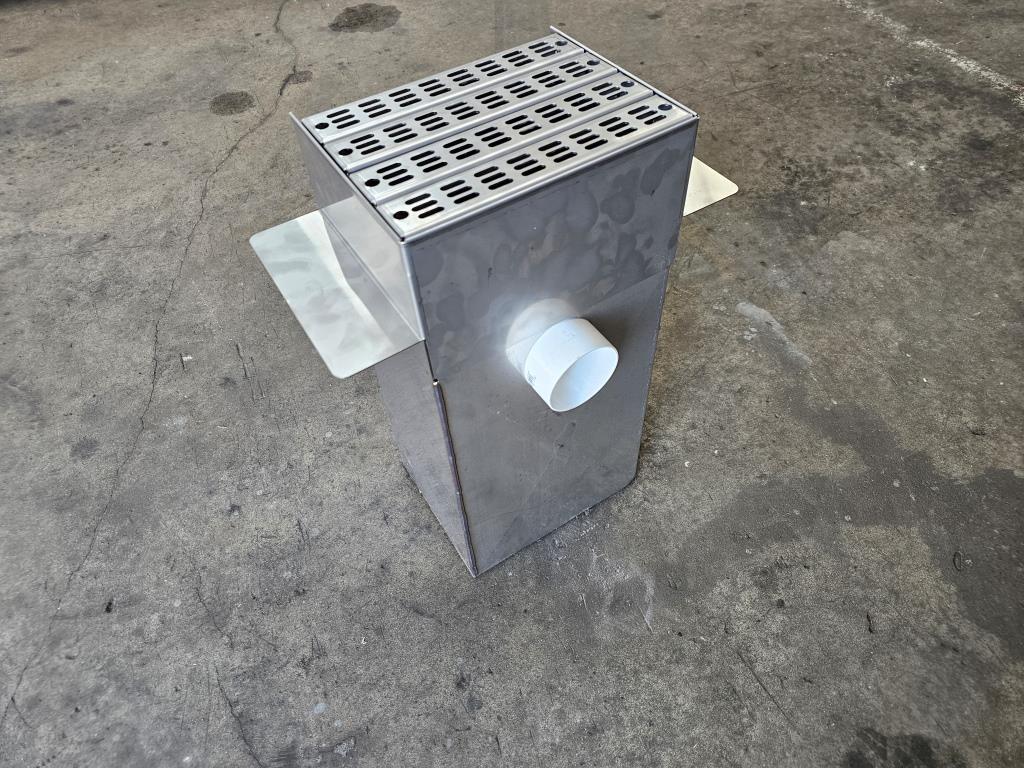

Outlet Side
