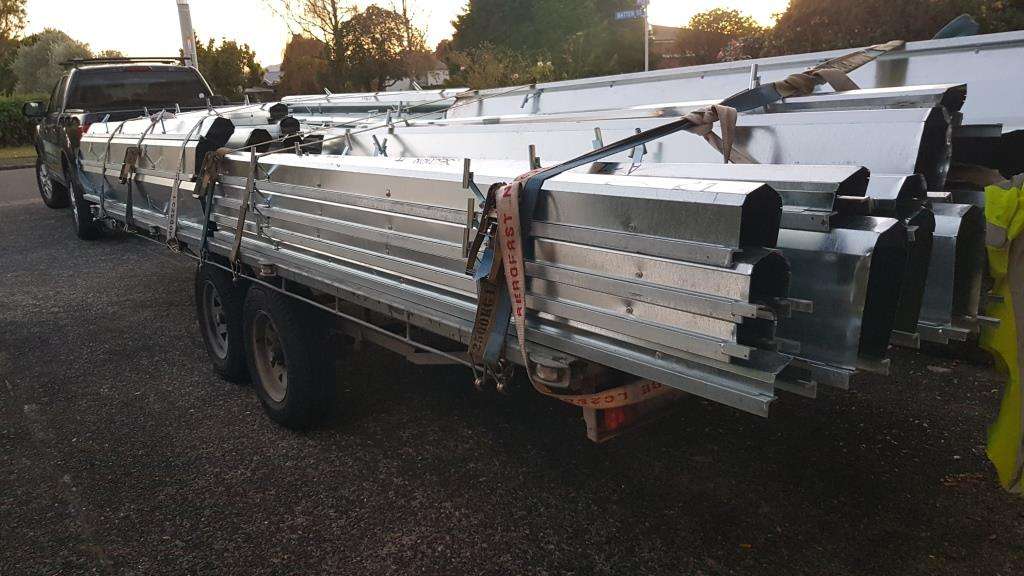

On Trailer Ready to Despatch

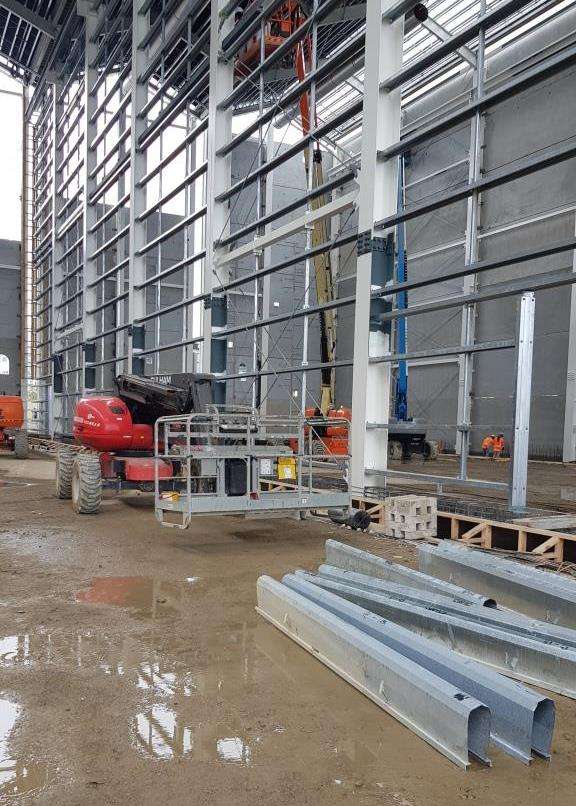

3.0 L/m Section on site

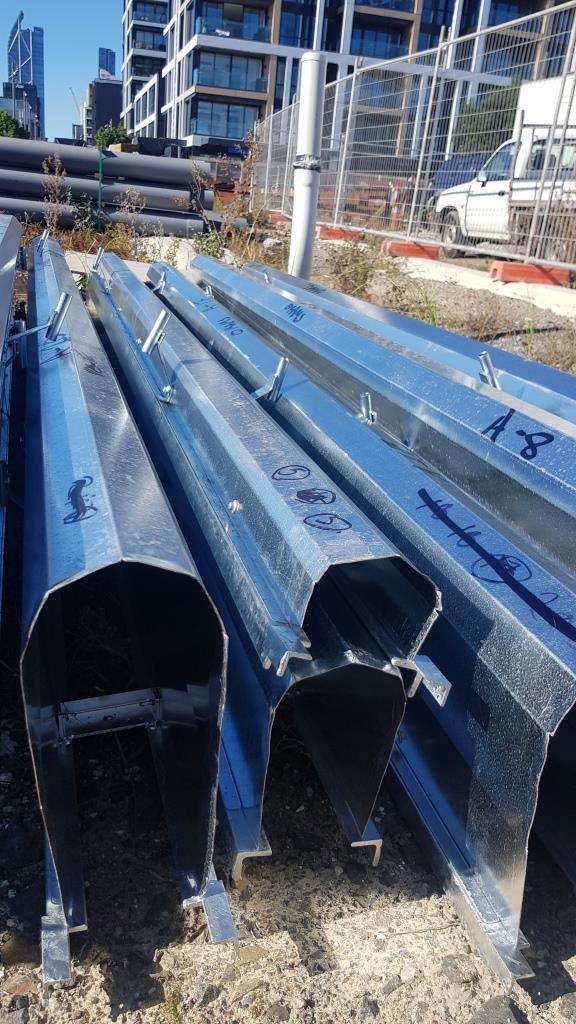

Thundaflo 3.0m Sections on Site. The Sections in the photo are deep at >300mm.

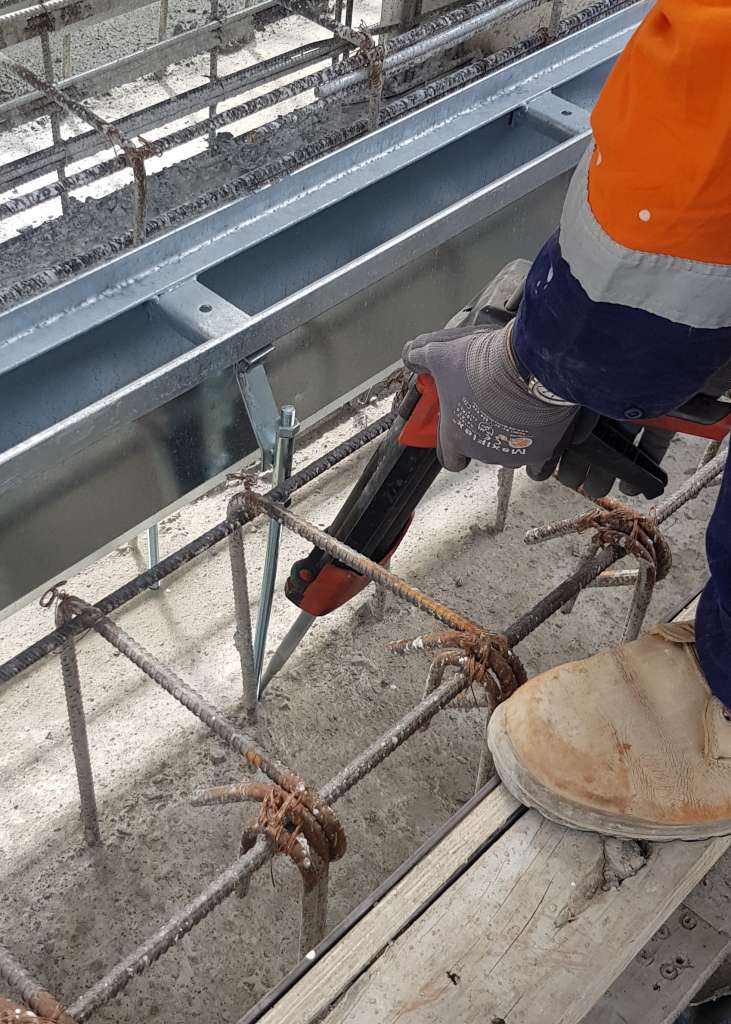

Epoxy Resin being inserted to secure the threaded rod

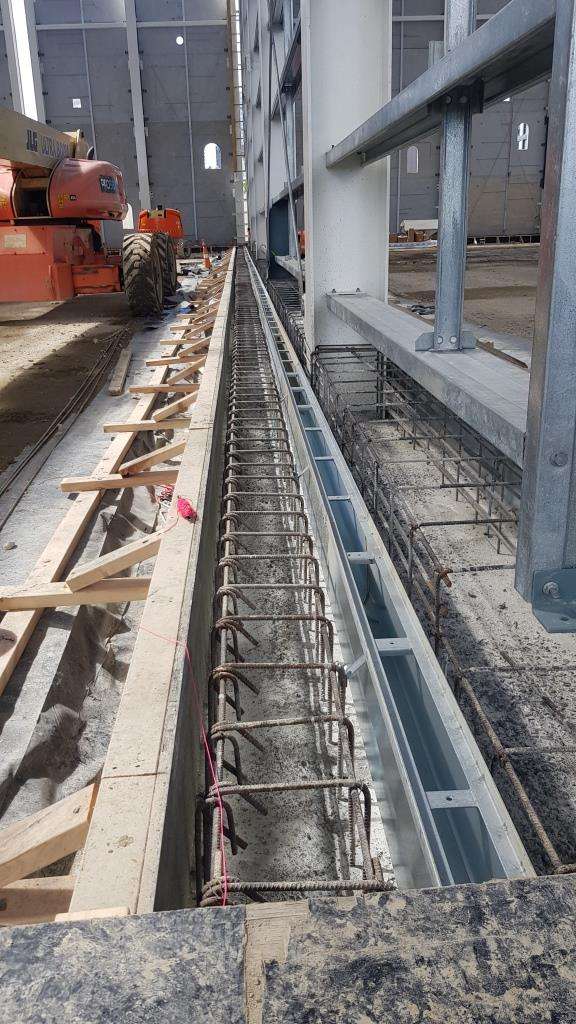

Sections in Position ready for the concrete pour

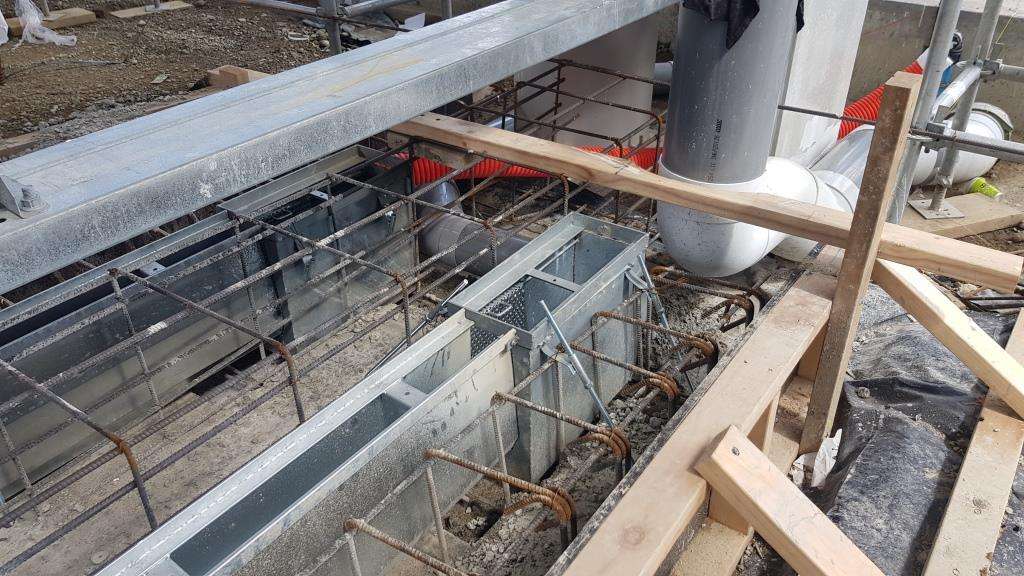

Channel & Sump in Position

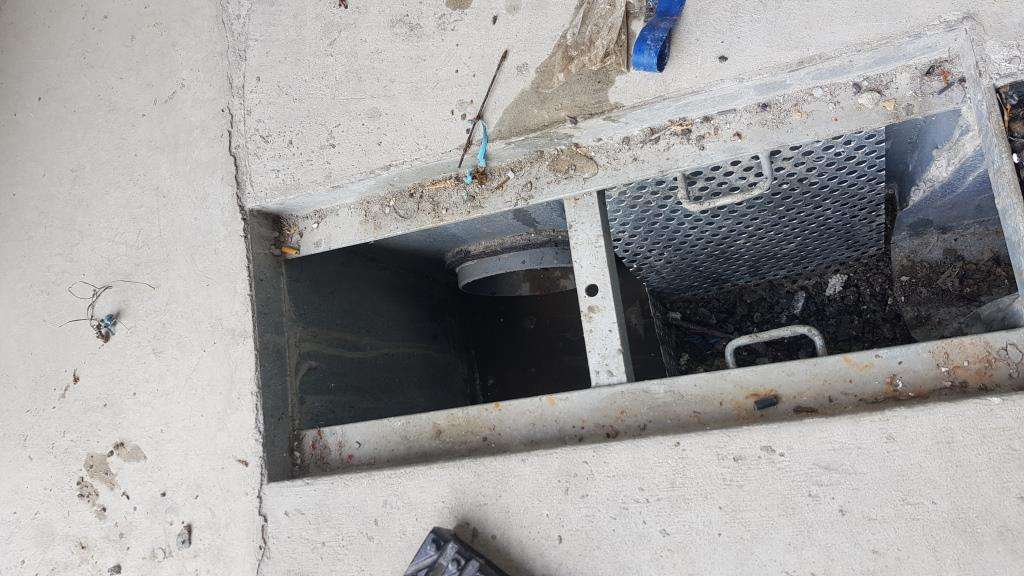

Sump with Catch Basket

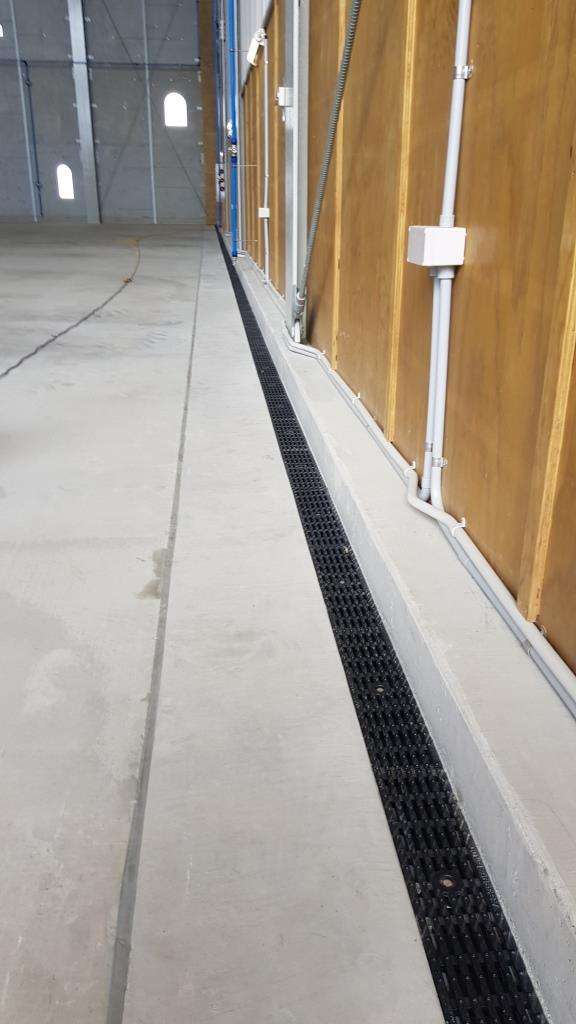

Concrete Poured, Grates in, Finished
